240kW Floor-Mounted Integrated 2 Guns DC EV Charger
Time is the most valuable metric in commercial EV operations. By bypassing the vehicle’s On-Board Charger (OBC) and delivering direct current straight to the battery, JiuRoad DC Fast Chargers drastically minimize dwell time. Where traditional AC chargers take hours, our DC solutions reduce charging time mathematically
240kW
Output Power
Up to 2
Charging Guns
21 Inch
Touch Screen
≥97%
Efficiency

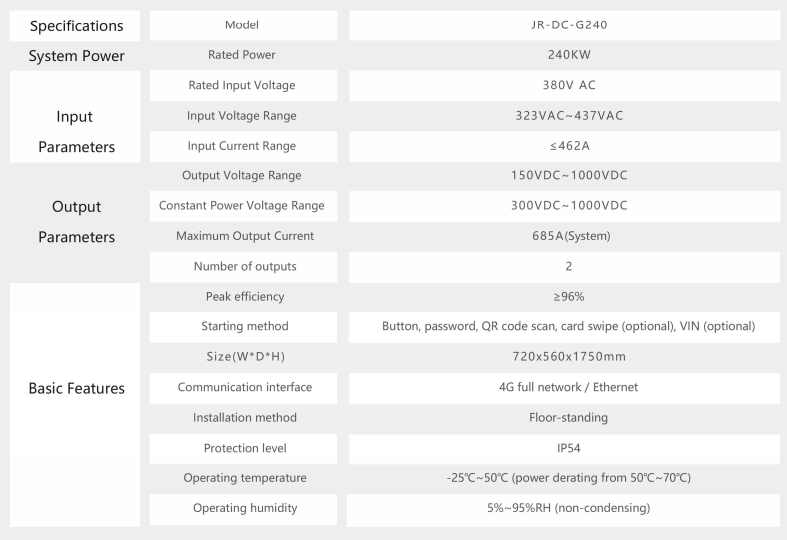

| Specifications | Model | JR-DC-G240 |
| System Power Rated Power 240KW | ||
Input Parameters | Rated Input Voltage | 380V AC |
| Input Voltage Range | 323VAC~437VAC | |
| Input Current Range | ≤462A | |
| Output Parameters | Output Voltage Range | 150VDC~1000VDC |
| Constant Power Voltage Range | 300VDC~1000VDC | |
| Maximum Output Current | 685A(System) | |
| Number of outputs | 2 | |
| Basic Features | Peak efficiency | ≥96% |
| Starting method | Button,password,QR code scan,card swipe(optional),VIN(optional) | |
| Size(W*D*H) | 720×560×1750mm | |
| Communication interface | 4G full network/Ethernet | |
| Installation method | Floor-standing | |
| Protection level | IP54 | |
| Operating temperature | -25℃~50℃(power derating from 50℃~70℃) | |
| Operating humidity | 5%~95%RH(non-condensing) |
All-in-One Architecture: Fast Deployment, Zero Complexity
Unlike massive “split” systems that require complex routing between a hidden power cabinet and user-facing terminals, the “Integrated” architecture houses the entire power generation, cooling, and output matrix within a single footprint.
- Minimized Civil Engineering: Simply pour the concrete pad, route the primary AC grid feed directly into the base of the charger, and bolt it down. This drastically reduces underground trenching costs, high-voltage () cable runs, and installation time frames.
- Intelligent Dual-Gun Sharing: The machine features a built-in
Dynamic_Allocation_Algorithm(). It can unleash the absolute maximum blast into a single hyper-car, or intelligently split the power when two vehicles are connected. The internal matrix calculates optimal distribution
LARGE HUB.HIGHSPEED SUPER CHARGING
Top-tier fully flexible power distribution technology, intelligently and dynamically allocating power to each terminal
Advanced Turnkey Project Solutions
Deploying a charging hub is a major infrastructure project that goes far beyond simply dropping hardware on asphalt. Every commercial site has unique grid limitations, spatial flow constraints, and distinct revenue models. JiuRoad offers a comprehensive Advanced Project Consulting & Customization Service to architect a split-charging solution perfectly mapped to your specific environment.
Environmental & Grid-Constrained Tailoring
Spatial & Traffic Flow Architecture
Your Brand. Our Engineering. Comprehensive OEM/ODM Solutions.
We understand that Charge Point Operators (CPOs) and global distributors need to build undeniable brand equity. JiuRoad offers flexible, end-to-end Original Equipment Manufacturing (OEM) and Original Design Manufacturing (ODM) services, empowering you to launch premium charging hardware strictly under your own brand identity without the massive R&D overhead.
Localized Payment & Metrology Hardware
Seamless revenue collection and compliance are vital. We can integrate client-specified hardware directly into the charger casing. From global POS card terminals (such as Nayax or Ingenico) and encrypted RFID readers to integrating highly specific, MID-certified smart meters to meet strict regional metrology laws (such as Eichrecht in Germany or CTEP in California), guaranteeing your network is entirely legal and profitable.
Scalable Power Module Architecture
Choose your core power engine. We offer tailored internal power matrix configurations using different module building blocks (e.g., 30kW, 40kW, or 50kW modules). Depending on your target market’s grid constraints (), we can design a custom pre-wired chassis that allows you to sell an entry-level charger today, with the structural readiness to upgrade to ultra-high power outputs tomorrow.
Climate-Specific Thermal & Cable Management
Your hardware must survive its specific deployment environment. We customize internal thermal thresholds and physical ergonomics based on your geography. Options include heavy-duty dual-layer dust filtration for Middle Eastern desert deployments, automated internal heating components for Nordic winters (maintaining safe component operation at ), or adding specialized mechanical cable retractors to meet specific ADA (accessibility) regulations for cable weight.
Ready to Build Your Next-Gen Charging Network?
Connect with our engineering and sales experts for a customized, one-stop solution proposal.
