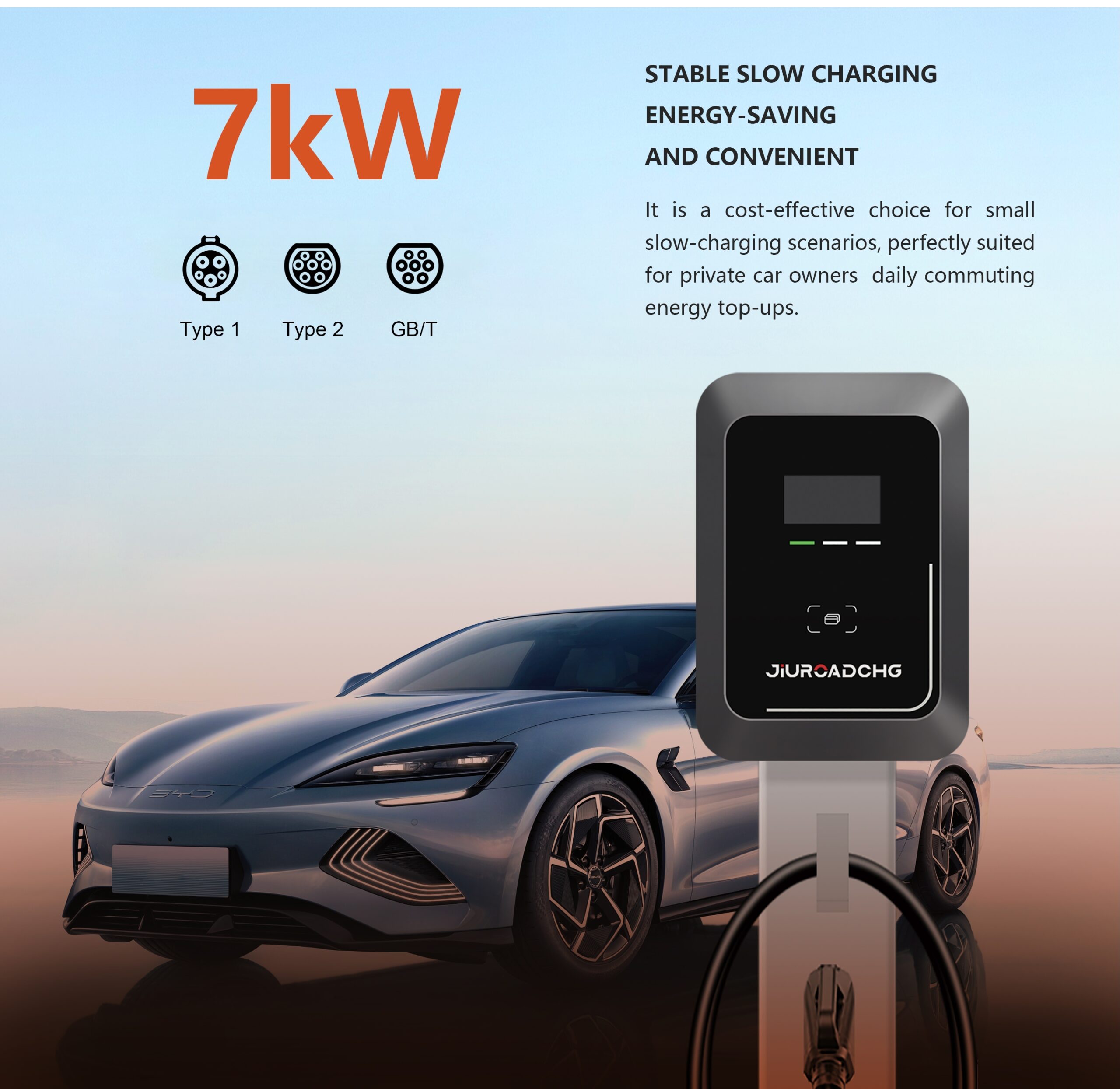

7kW single gun Floor-Mounted AC EV Charger
The JiuRoad 7kW Floor-Mounted AC Charger is the elegant, utilitarian foundation of everyday electric vehicle infrastructure. Designed with a sleek, single-gun pedestal architecture, it delivers a deeply reliable and steady flow of Alternating Current (AC) to the vehicle’s onboard charger.
It is a profoundly cost-effective choice for slow-charging scenarios, perfectly suited for private car owners’ daily commuting energy top-ups. By focusing on simplicity, extreme durability, and ultra-low standby power consumption, this unit provides property owners with an affordable way to electrify their parking assets at scale without triggering massive grid upgrades.
7kW
Output Power
Single
Charging Guns
21 Inch
Touch Screen
≥97%
Efficiency

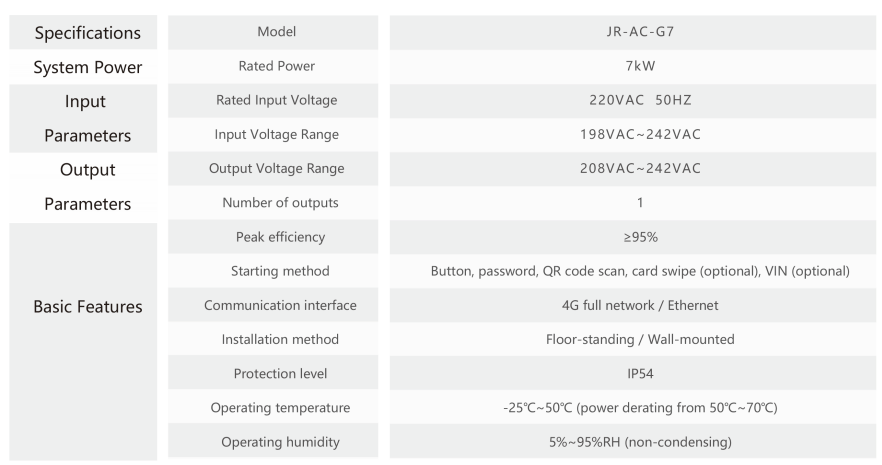

| Specifications | Model | JR-AC-G7 |
| System Power | Rated Power | 7kW |
| Input Parameters | Rated Input Voltage | 220VAC 50HZ |
| Input Voltage Range | 198VAC~242VAC | |
| Output Parameters | Output Voltage Range | 208VAC~242VAC |
| Number of outputs | 1 | |
| Basic Features | Peak efficiency | ≥95% |
| Starting method | Button,password,QR code scan,card swipe(optional),VIN(optional) | |
| Communicationinterface | 4G fullnetwork/Ethernet | |
| Installation method | Floor-standing/Wall-mounted | |
| Protection level | IP54 | |
| Operating temperature | -25℃~50℃(power derating from 50℃~70℃) | |
| Operating humidity | 5%~95%RH(non-condensing) |
The Economics of Daily Energy Replenishment
- Heavy-Duty Floor-Mounted Pedestal: A robust galvanized steel or aluminum pillar designed to be bolted directly into concrete. It elevates the charging port to an ergonomic height while keeping the power feed safely enclosed within the core.

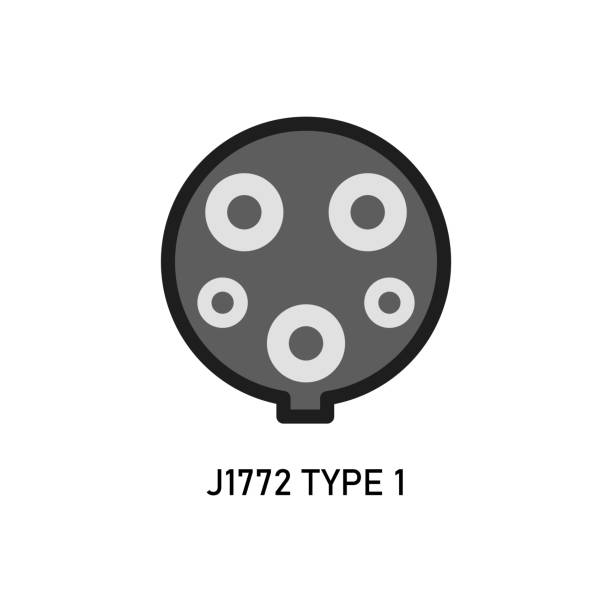

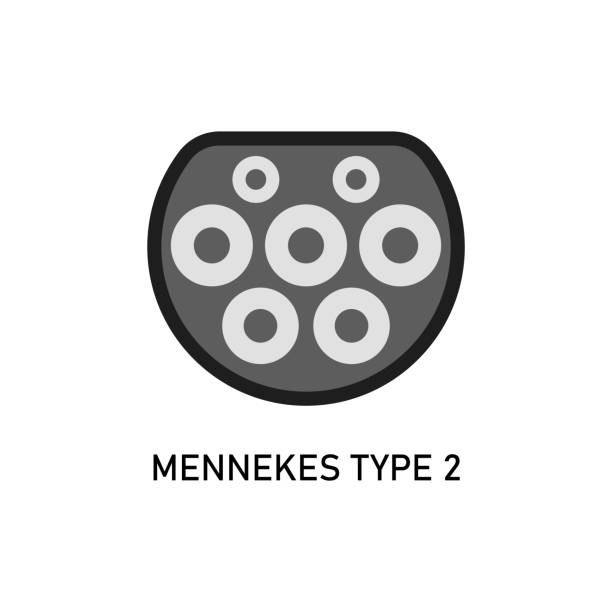

- Single AC Connector: Equipped with a standardized Type 2 (or Type 1/GB/T depending on region) plug on a flexible, cold-resistant 5-meter cable.
- High-Security Core: Features an IP54/IP55 weather rating for outdoor endurance and an IK10 impact resistance rating, protecting internal components from vandalism or accidental vehicle impacts.
- Smart Metrology & Connectivity: Built-in MID-certified smart meters accurately calculate precise consumption for transparent tenant or employee billing via Wi-Fi/4G OCPP backends.
Plug and socket
High-Security Commuter Lots & Advertising Placements
- High-Security Advertising Placement: The broad, flat surface of the physical pedestal serves a dual purpose in secure environments. It offers prime real estate for property branding, parking zone instructions, or vinyl/light-box advertising placements, allowing property management to monetize the physical space as well as the electricity.
- Workplace & Corporate Campuses: The ultimate perk for employees. They arrive at 9:00 AM, plug in, and depart at 5:00 PM with a 100% full battery, perfectly matching the 7kW delivery timeline.
- Residential & Multi-Dwelling Units (MDUs): Underground condo parking or apartment complexes where tenants need dedicated, cost-effective overnight charging directly at their assigned parking bays.
The Economics of Daily Energy Replenishment
🔌 Stable Slow Charging
Not every vehicle requires a megawatt blast of power. For vehicles parked for 4 to 12 hours, slow AC charging is actually superior for long-term battery health (reducing thermal degradation). A standard output safely and predictably adds roughly of range per hour of dwell time:
🍃 Energy-Saving & Convenient
The internal circuitry is optimized for minimal energy waste. With ultra-low standby power consumption (), the charger does not silently drain electricity when idle. For the user, convenience is paramount: simply swipe an RFID card, plug in the lightweight connector, and walk away.
💰 The Cost-Effective Baseline
Due to its streamlined AC architecture (lacking heavy DC rectifiers), the CapEx per unit is a fraction of fast chargers. This allows property developers to deploy 50 of these units across a parking lot for the same price as deeply integrated DC hubs.
Environmental & Grid-Constrained Tailoring
Spatial & Traffic Flow Architecture
Your Brand. Our Engineering. Comprehensive OEM/ODM Solutions.
We understand that Charge Point Operators (CPOs) and global distributors need to build undeniable brand equity. JiuRoad offers flexible, end-to-end Original Equipment Manufacturing (OEM) and Original Design Manufacturing (ODM) services, empowering you to launch premium charging hardware strictly under your own brand identity without the massive R&D overhead.
Localized Payment & Metrology Hardware
Seamless revenue collection and compliance are vital. We can integrate client-specified hardware directly into the charger casing. From global POS card terminals (such as Nayax or Ingenico) and encrypted RFID readers to integrating highly specific, MID-certified smart meters to meet strict regional metrology laws (such as Eichrecht in Germany or CTEP in California), guaranteeing your network is entirely legal and profitable.
Scalable Power Module Architecture
Choose your core power engine. We offer tailored internal power matrix configurations using different module building blocks (e.g., 30kW, 40kW, or 50kW modules). Depending on your target market’s grid constraints (), we can design a custom pre-wired chassis that allows you to sell an entry-level charger today, with the structural readiness to upgrade to ultra-high power outputs tomorrow.
Climate-Specific Thermal & Cable Management
Your hardware must survive its specific deployment environment. We customize internal thermal thresholds and physical ergonomics based on your geography. Options include heavy-duty dual-layer dust filtration for Middle Eastern desert deployments, automated internal heating components for Nordic winters (maintaining safe component operation at ), or adding specialized mechanical cable retractors to meet specific ADA (accessibility) regulations for cable weight.
